New type plastic grinding machine

The pulverizers are usually for processing and grinding PVC,UPVC



There are two main features on the pulverizer. One is the moving baldes are in new type. The other is It is with pulse dust collector and no dust during the production process.

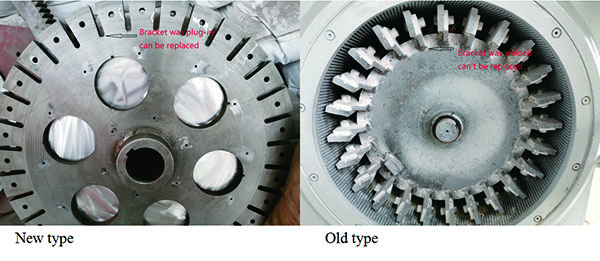

New type, the biggest change is its blades part. In future you only need to replace blades, no need to change bracket.



Item

SMW800

Diameter (mm)

772

Static blade quantity (pcs)

19

Rotary blade quantity (pcs)

32

Blade material

9Crsi

Main motor power (KW)

75 (90KW)

Draft Fan(KW)

7.5 (15KW)

Air Shutter(KW)

1.1

Cooling method

water cooling and air cooling

Dust setting device

1 set

Vibration screen

1 PC (diameter: 1200mm)

Bearing

High-speed wear-resisting bearing (Chinese famous brand)

Electric box

1 set

Electrical components

Siemens and Delixi

Material touched with material

Stainless steel `

Final power size

About 30-40 mesh

Output  (kg/h)

400-600

Voltage and Hz

380V / 50Hz / 3 phase

Weight  (kg)

2500

Outer Dimensions （mm）

2600x1400x3700
